4 SERIES
Packed With Goodies
Introducing the 4M and 4R Series – loaded with premium, state-of-the-art technology and class-leading features you won’t find anywhere else. Take one look and it’s easy to see why the 4 Family truly is the new king of the compacts.
PLANETARY GEARS
This is the same final drive layout we fit in our bigger tractors. It improves reliability by spreading the load over three gears.
GREATER CONTROL, FEWER EMISSIONS
Intelligent common rail engines control fuel injection timing and provide precise control for increased performance. The 4066R also features a diesel particulate filter for reduced engine emissions.
STANDARD JOYSTICK WITH 3RD FUNCTION
Ergonomically located integrated joystick for maximum control and comfort during operation of front or mid-mounted implements. It also features an integrated 3rd function which is ideal when using a multi-functionbucket etc. The 4th and 5th function have independent controls providing additional versatility.
ESCV – ELECTRICAL MIDMOUNT VALVE
This electro-hydraulic SCV system provides easy, precision control over mid/front mounted hydraulic functions. The selectable speed setting tunes the electronic joystick control to specific applications, while the ‘3rd function’ buttons add flexibility on a wide range of jobs
WET DISC BRAKES
The self-adjusting disc brakes are oil cooled to prevent fading and minimise wear.
MAXIMISE PRODUCTIVITY
Match your tractor’s performance to the task in hand effortlessly with eHydro, our 3- range electronic transmission with Twin Touch pedals:
​
LoadMatch: adjusts transmission speed for maximum performance when moving heavy loads.
MotionMatch: adjusts transmission response, perfect for moving back-and-forth during loading.
SpeedMatch: sets a constant creeper speed during aeration and spraying.
POWERFUL HYDRAULICS
Large hydraulic pumps ensure responsive steering, fast loading cycles and effortless work. You can even apply optional down pressure on the 3-point hitch when drilling post holes.
SINGLE WHEEL BRAKES
Help to increase traction even in very rough conditions and allow even tighter turns.

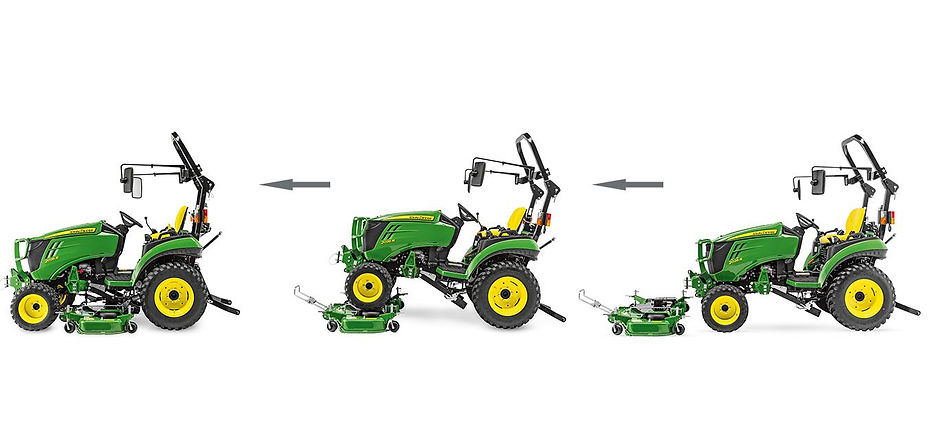

AUTO CONNECT MOWER DECK
The Optional John Deere AutoConnect Mowing Deck attaches in seconds, saving you time every time you mow. The deck and driveshaft automatically connects when you drive over it. Then when you’re done, simply reverse back over to disconnect again – all from the comfort of your seat.
Watch below for an overview on Attachments including the AutoConnect Mowing Deck
HUNT FOREST RECOMMENDS
The 4M Series gives you all the incredible features of a 3E, plus the power and control of a fully grown farm tractor. With a 4-cylinder diesel engine, an eHydro transmission, 4WD and a new, intuitive control console at your command, you have everything you need to tackle a wide range of jobs effectively and easily.
4052M
50.8 horsepower diesel engine
PowrReverserâ„¢ or eHydroTM transmission options
Standard 4-wheel-drive
Category 1, 3-point hitch
​
Engine - 4 Cylinder Diesel
Power - 50.8 hp at 2600 rpm
Lift Capacity - 1134 kg
Hydraulic Flow - 60,2 l/min
Towing Capacity - 2,860 kg
Forward Speed - 30 km/h
4052R
50.8 horsepower diesel engine
PowrReverserâ„¢ or eHydroTM transmission options
Standard 4-wheel-drive
Category 1, 3-point hitch
​
Engine - 4 Cylinder Diesel
Power - 50.8 hp at 2600 rpm
Lift Capacity - 1,134 kg (at lift points)
Hydraulic Flow - 60,2 l/min
Towing Capacity - 2,460 kg
Forward Speed - 30 km/h
4066M
65 horsepower diesel engine
PowrReverserâ„¢ or eHydroTM transmission options
Standard 4-wheel-drive
Category 1, 3-point hitch
​
Engine - 4 Cylinder Diesel
Power - 65 hp at 2600 rpm
Lift Capacity - 1,134 kg
Hydraulic Flow - 60,2 l/min
Towing Capacity - 2,860 kg
Forward Speed - 30 km/h
4066R
65 horsepower diesel engine
eHydrostatic Transmission Two-Pedal Automatic
Standard 4-wheel-drive
Category 1, 3-point hitch
​
Engine - 4 Cylinder Diesel
Power - 65 hp at 2600 rpm
Lift Capacity - 1,134 kg
Hydraulic Flow - 60,2 l/min
Towing Capacity - 2,460 kg
Forward Speed - 30 km/h
